SSAS,LRIT,IRIDIUM GMDSS SATCOM SYSTEM

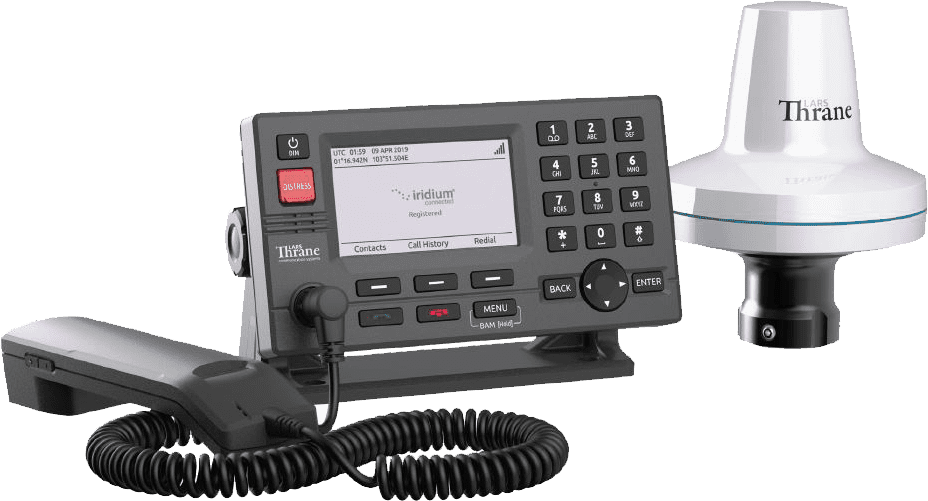

Model:LT-3100S GMDSS System

◎ 100% Global GMDSS Coverage (Sea Areas A1 to A4)
◎ Distress Alert & Safety Voice
◎ Maritime Safety Information (MSI)
◎ General Message Communication ◎ Ship Security Alert System (SSAS) ◎ Support for external Alarm Panels ◎ Support for Bridge Alert Management (BAM)
◎ Long Range Identification and Tracking (LRIT)
◎ Voice, SMS, SBD, and Modem Data (non-priority)
◎ Single antenna cable solution (up to 500 m)
◎ High-performance GNSS/GPS receiver ◎ Webserver for configuration and maintenance

The LT-3100S GMDSS system is not only designed for GMDSS services. It also offers SSAS and LRIT functionalities. It can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity between the ship and shore.

Specification

◎ LT-3110S Control Unit
   ◆ Weight: 658 g (1.45 lbs)
   ◆ Dimensions: 224.0 x 120.0 x 70.0 mm
     (8.82 x 4.72 x 2.76 in)
   ◆ Temperature, operational: -15°C to +55°C
     (+5°F to +131°F)
   ◆ IP rating, dust and water: IP32
◎ LT-3120 Handset Unit
   ◆ Weight: 290 g (0.64 lbs)
   ◆ Dimensions: 208.8 x 52.8 x 38.2 mm
     (8.22 x 2.08 x 1.50 in)
   ◆ Temperature, operational: -15°C to +55°C
     (+5°F to +131°F)
   ◆ IP rating, dust and water: IP32
◎ LT-3130 Antenna Unit
   ◆ Weight: 687 g (1.51 lbs)
   ◆ Dimensions: 151.1 x Ø 149.5 mm
     (5.95 x Ø 5.89 in)
   ◆ Temperature, operational: -40°C to +55°C
     (-40°F to +131°F)
   ◆ IP rating, dust and water: IP67
