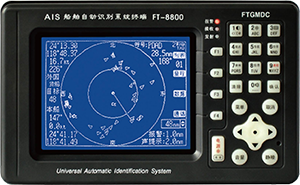

Marine Navigation Class A

Model:FT-8800

According to the IMO regulations of the International Maritime Organization, it is mandatory that all passenger ships, as well as international cargo ships of 300 tons or more and domestic cargo ships of 500 tons or more, should be equipped with the automatic identification system AIS.

◎ AIS helps to strengthen the safety of life at sea, improve the safety and efficiency of navigation.
◎ AIS functions include: 1. Identifying ships 2. Assisting in tracking targets 3. Simplifying information exchange 4. Providing other auxiliary information to prevent collisions.
◎ AIS strengthened measures to avoid collisions, and enhanced ARPA radar, ship traffic management system, and ship reporting functions.

Features

◎ 6-inch LCD display for ship dynamic and static information data
◎ Chinese and English display operation function
◎ With sound, light prompt and approach alarm function
◎ Navigation plan operation function
◎ Provide multiple data interfaces

Product acessories

◎ High-frequency antenna 156M VHF
◎ Feeder ∮5 / 15m
◎ GPS antenna RG-58 / U50Ω

Specification

RF unit: 1 transmitter, 3 receivers
Frequency range: 156.025-162.025MHZ
Working channel:
      AIS1 (CH87B): 161.975MHZ
      AIS2 (CH88B): 162.025MHZ
PSC receiving frequency: 156.525MHZ (CH70)
Display screen: LCD 6.0 inch
Working power: AC220V DC13.8V (± 15%)
Working temperature: -15 ° C ± 55 ° C
Exterior specifications:
      Display: 235 × 145 × 70mm
      Host: 250 × 280 × 170mm
Net weight: 6280g (± 2%)


FT501	GPS antenna for ship	AIS antenna
